Direct answer: Crawl-space-rated dehumidifiers run about $567–$2,236 for the unit at verified September 2026 retail, plus $150–$600 for hang, drain, and a new 15A circuit when needed—typical 70-pint-class installs land near $1,650–$2,850. Plan on roughly $145–$330/year in power at the U.S. EIA 2025 residential average of 17.3¢/kWh, depending on wattage and run hours.

Spec E070, E100, Santa Fe Compact70/Advance2, or AlorAir Sentinel on new work—legacy 1820/1850 lines are discontinued. Box-store portables lack crawl duty cycle, low-temp rating, and hard-plumbed drains.

Unit Cost by Capacity and Brand

AHAM = 80°F / 60% RH. Retail spans are from manufacturer or authorized dealers, not installed bids.

Model	Capacity	Min Temp	Unit Cost	Best For
Aprilaire E070	70 pint/day	~40°F	$1,677–$1,799	Sealed crawls to ~2,200 sq ft
Santa Fe Compact70	70 pint/day	38°F	$1,299–$1,379	Tight height; R454B
AlorAir Sentinel HDi65S	55 pint/day	33.8°F	$567–$756	Low retail; built-in pump
Aprilaire E100	100 pint/day	~50°F	$1,878–$2,236	1850 replacement; heavy load
Santa Fe Advance2	90 pint/day	49°F	$1,380–$1,903	Mid-large crawls
AlorAir Sentinel HDi90	90 pint/day	33.8°F	$872–$975	Mid-large; pump included

Installation Cost Components

• Electrical ($0–$600): Dedicated 15A/115V circuit. Existing crawl outlet: $0 add-on. New homerun: $300–$600—still the biggest swing item; confirm before you budget.
• Mounting ($100–$250): Hang from joists or frame a platform above the liner; never set the cabinet on the vapor barrier.
• Condensate ($50–$200): Gravity to sump or drain when possible; add $80–$150 in pump hardware when the unit sits below the discharge point. Many Sentinel models include a pump.

Total Installed Cost Summary

Scenario	Unit	Electrical	Mount + Drain	Total
Existing outlet, gravity drain	$1,299–$1,716	$0	$150–$350	$1,450–$2,070
New 15A circuit	$1,299–$1,716	$300–$600	$150–$350	$1,750–$2,670
New circuit + pump path	$1,299–$1,716	$300–$600	$250–$500	$1,850–$2,820
Aprilaire E100 + new circuit	$1,878–$2,236	$300–$600	$150–$350	$2,330–$3,190

Annual Operating Cost

• 70-pint class (~580–650 W): About $145–$165/year at 4 hours/day run time, or $290–$330/year at 8 hours/day, at 17.3¢/kWh (EIA 2025 U.S. residential average).
• 90-pint class (~800 W): About $200–$400/year at the same duty cycles.
• High-rate states (25–35¢/kWh): Multiply by roughly 1.4–2.0.

Log RH 30 days after commissioning—crawl space humidity monitor placement catches undersized units before mold does.

Contractor vs. DIY

Bids still bundle dehumidifiers at $1,500–$3,500 installed. DIY on the same SKU saves roughly $300–$700 when outlet and drain exist; you own code, hang, and warranty. See crawl space encapsulation cost.

Frequently Asked Questions

How much does a crawl space dehumidifier cost?

Expect roughly $567–$2,236 for the unit alone at verified 2026 retail, depending on brand and capacity. Total installed cost with mounting, condensate routing, and a new 15A circuit when needed usually lands near $1,650–$2,850 for a standard 70-pint class system. Encapsulation contractors often quote $1,500–$3,500 for the dehumidifier line item, which may bundle electrical, commissioning, and service.

What is the cheapest crawl space dehumidifier that actually works?

The AlorAir Sentinel HDi65S is the lowest verified retail price in this class—about $567–$756 direct from AlorAir—with a built-in pump, auto defrost, and roughly 33.8°F minimum operating temperature. It is rated 55 pints/day at AHAM (80°F, 60% RH), not 70, so size it conservatively. Warranty and distributor support are thinner than AprilAire or Santa Fe; weigh that if you are far from a wholesaler.

Is it cheaper to run an HVAC supply duct than a dehumidifier?

Cheaper upfront: tying a small supply register from existing forced-air HVAC into the crawl often runs $300–$600 installed versus $1,650–$2,850 for a dedicated dehumidifier on typical retail plus labor. Operating cost stays lower too because you are piggybacking on the central system. In humid Southeast and Gulf climates, supply-only rarely holds RH below 60% year-round; verify with a logger before you skip mechanical dehumidification.

Do I need a dedicated electrical circuit for a crawl space dehumidifier?

Yes—a dedicated 15A, 115V circuit is standard. Many 70-pint class units draw about 5–6 amps running (roughly 580–650 watts). If a GFCI-protected outlet already exists in the crawl, electrical add-on cost is $0; pulling a new homerun from the panel typically adds $300–$600 in labor and materials in 2026 markets.

How much does it cost to run a crawl space dehumidifier per year?

At the U.S. EIA 2025 residential average of 17.3¢/kWh, a 580-watt unit running 8 hours/day averages about $290/year; 4 hours/day averages about $145/year. A 90-pint class unit near 800 watts at the same duty cycles runs about $200–$400/year. High-cost states at 25–35¢/kWh roughly double those figures.

Condensation in a crawl space — liquid water that forms on structural wood, pipes, ductwork, and other surfaces without any rain or plumbing leak — is one of the most misunderstood moisture mechanisms in residential construction. Homeowners who find wet joists and assume they have a roof leak or plumbing problem spend money investigating phantom leaks while the actual cause — physics — continues unaddressed. Understanding why condensation happens in crawl spaces, how to confirm that condensation (rather than bulk water) is the problem, and what actually stops it is the foundation for effective moisture management.

The Physics of Crawl Space Condensation

Every cubic foot of air holds a specific maximum amount of water vapor — the maximum is called the saturation point, and it increases with temperature. When air is cooled below its saturation point, the excess moisture it can no longer hold is released as liquid water — condensation. The temperature at which a given air mass reaches its saturation point is the dewpoint temperature.

In a vented crawl space in summer, the mechanism is straightforward:

• Outdoor air in a humid climate (Southeast, Mid-Atlantic, Midwest in summer) has a high absolute humidity — the air contains large amounts of water vapor. A typical July afternoon in Charlotte, NC or Columbus, OH might have outdoor air at 90°F and 65% relative humidity, with a dewpoint of 76°F.
• This warm, humid outdoor air enters the crawl space through foundation vents.
• Inside the crawl space, the underside of the subfloor is cooled by the air-conditioned living space above — typically 10–20°F below outdoor temperature.
• The crawl space surfaces (subfloor underside, floor joists, pipes, ductwork) may be at 65–75°F — below the outdoor dewpoint of 76°F.
• When the 90°F outdoor air carrying its 76°F dewpoint contacts surfaces at 70°F, the air is cooled below its dewpoint. The excess moisture it can no longer hold condenses as liquid water on those surfaces.

This is not a construction defect, a drainage problem, or a materials failure. It is thermodynamics operating on a vented crawl space in the wrong climate. The vented crawl space design assumes outdoor air is drier than the crawl space interior — which is true in cold, dry climates but completely backwards in humid summer climates.

Diagnosing Condensation vs. Bulk Water

The key diagnostic distinction is timing relative to weather events:

• Condensation signature: Moisture on wood surfaces increases during warm, humid weather — particularly during sustained humidity events, summer months, and periods without rain. Moisture decreases in cool, dry weather or in winter. No correlation to rain events specifically.
• Bulk water signature: Moisture or standing water appears within 24–72 hours of significant rain events. Watermarks on the foundation wall at consistent heights. Efflorescence (white mineral deposits) on foundation walls indicating past water contact.
• Soil vapor diffusion signature: Moisture present year-round at moderate, consistent levels regardless of weather. Highest in low-lying areas where the water table is closest. No strong correlation to outdoor humidity or rain.

The definitive diagnostic test: place a 12″ × 12″ piece of plastic sheeting on the bare soil in the crawl space and tape its edges with duct tape. Wait 24 hours. Condensation on the top of the plastic (facing the crawl space air) indicates atmospheric condensation. Moisture on the underside of the plastic (between plastic and soil) indicates soil vapor diffusion through the soil surface. Both can occur simultaneously.

Why “More Ventilation” Makes Condensation Worse

The intuitive response to a damp crawl space is often to add more ventilation — more foundation vents, a powered exhaust fan. In a humid climate in summer, this makes condensation significantly worse, not better. More ventilation means more humid outdoor air entering the crawl space, more air being cooled below the dewpoint, and more condensation on surfaces. The Advanced Energy Corporation’s field research in North Carolina found that homes with more foundation vents had higher wood moisture content in summer than homes with fewer vents — the opposite of the expected outcome from the traditional ventilation philosophy.

The Only Proven Solution for Condensation

For humid-climate crawl space condensation, the only proven solution is sealing the crawl space from outdoor air entry and adding active humidity control. This is precisely what encapsulation accomplishes:

• Sealing foundation vents eliminates the pathway through which outdoor humid air enters the crawl space
• The vapor barrier prevents soil vapor diffusion from adding to the crawl space air humidity
• The dehumidifier or HVAC supply connection maintains relative humidity below the dewpoint threshold at which condensation occurs on the cooler surfaces in the space

After encapsulation of a condensation-problem crawl space, wood surfaces that previously showed 22–25% moisture content in summer stabilize at 10–14% — below the threshold for mold growth and far below the threshold for wood decay fungi. The transformation is measurable and typically occurs within 60–90 days of encapsulation.

Frequently Asked Questions

Why is there condensation in my crawl space?

In a vented crawl space in a humid climate: summer outdoor air enters through foundation vents with a dewpoint temperature that exceeds the temperature of the crawl space’s cooler surfaces (subfloor, joists, pipes cooled by the air-conditioned space above). When warm, humid air contacts these cooler surfaces, the air is chilled below its dewpoint and releases liquid water as condensation. This is thermodynamics, not a construction defect or drainage problem.

Will adding more foundation vents stop crawl space condensation?

No — in humid climates, adding foundation vents makes condensation worse, not better. More vents mean more humid outdoor air entering the crawl space and more condensation on cool surfaces. Building science research has documented that homes with more foundation vents have higher wood moisture content in summer than homes with fewer vents in humid climates. The correct solution is sealing the crawl space from outdoor air entry, not increasing ventilation.

How do I stop condensation in my crawl space?

Crawl space encapsulation — sealing foundation vents, installing a vapor barrier, and adding a dehumidifier or HVAC supply duct — is the only proven solution for condensation-problem crawl spaces in humid climates. This eliminates the pathway for humid outdoor air to enter (eliminating the condensation source), controls residual humidity from soil vapor diffusion, and maintains the sealed space below the dewpoint threshold at which condensation occurs on cooler surfaces.

Installing a crawl space vapor barrier is the most DIY-accessible component of a full encapsulation system — and the one that saves the most money if done correctly. Material cost for a 1,200 sq ft crawl space is $480–$2,400 depending on barrier quality; professional labor for barrier installation alone is $1,000–$2,500. The $1,000–$2,500 in potential savings is real, but only if the installation is done correctly. Improperly installed barriers — unsealed seams, missed penetrations, inadequate wall coverage — provide significantly less protection than a properly installed system. This guide covers the complete installation process step by step.

Materials and Tools Needed

Materials

• Vapor barrier: Minimum 12-mil reinforced polyethylene (for a full encapsulation; 6-mil is insufficient for most real-world crawl spaces). Calculate quantity: crawl space square footage × 1.35 to account for wall coverage and seam overlaps. For a 1,200 sq ft crawl space: 1,200 × 1.35 = 1,620 sq ft of barrier material needed.
• Seam tape: Compatible reinforced polyethylene tape designed for vapor barrier seaming — not duct tape, not standard packing tape. Must be labeled as compatible with the barrier material. Budget: 4–6 rolls of 3″ × 180′ tape for a 1,200 sq ft crawl space.
• Mechanical fasteners: Hammer-drive concrete anchors or Hilti pins (powder-actuated) for fastening the barrier to the foundation wall at the top edge. Alternatively, a construction adhesive compatible with polyethylene.
• Wall termination strip: A plastic or aluminum channel that holds the top edge of the barrier against the wall and provides a clean termination line. Optional but provides a more professional finished appearance.
• Pipe penetration seals or tape: Pre-cut penetration seals or compatible tape for sealing around pipes, conduit, and columns.
• Backer rod: For sealing large gaps at the floor-wall joint before applying the barrier.

Tools

• Utility knife with extra blades (barrier material dulls blades quickly)
• Tape measure and chalk line
• Hammer drill with concrete bit (for mechanical fasteners)
• Seam roller or J-roller (a wallpaper seam roller) for pressing seam tape firmly
• Knee pads
• Bright LED work light
• N95 respirator, Tyvek coveralls, gloves, and eye protection

Phase 1: Preparation (Day 1, 2–4 hours)

Clear the Crawl Space

Remove everything from the crawl space floor that would create a puncture hazard or prevent full barrier coverage: old vapor barrier material, rocks and concrete rubble, construction debris, and any stored items. Knock down or smooth sharp concrete protrusions from footings and foundation walls. This preparation step is often skipped by quick-service installers but is essential — sharp debris beneath the barrier causes punctures that undermine the entire installation.

Remove Old Insulation (If Present)

Deteriorated fiberglass batt insulation between floor joists must be removed before installing a new vapor barrier. Old insulation harbors mold, pest material, and moisture — leaving it above the vapor barrier creates a micro-environment that defeats the moisture control the barrier is intended to achieve. Use heavy-duty contractor bags for removal; expect 4–8 bags for a 1,200 sq ft crawl space. This is unpleasant work but non-negotiable for a quality installation.

Identify and Plan for All Penetrations

Walk the crawl space and identify every penetration through the barrier that will be needed: foundation piers, support columns, plumbing pipes, and electrical conduit. Plan the barrier strips to minimize the number of cuts required around each penetration — in many cases, placing the barrier strip to approach a column from one direction allows a simpler cut than if the column is in the middle of a strip.

Phase 2: Barrier Installation (Day 1–2, 4–8 hours)

Start at the Back Wall

Begin at the wall farthest from the access point. This allows the installation to progress toward the exit — you will not be crawling over freshly installed, untaped barrier material as you work. Unroll the first strip from the back wall across the crawl space toward the front.

Wall Coverage

The barrier must extend up the foundation wall — not just cover the floor. The minimum wall coverage is 6 inches above the visible soil or moisture line; 12 inches is better practice; the full height of the foundation wall is best practice for a complete encapsulation. At the back wall:

• Unroll the barrier strip to extend up the back wall to your target height
• Secure the top edge to the wall using hammer-drive anchors or construction adhesive, spaced every 12–18 inches
• The barrier lies flat on the ground from the base of the wall toward the access end

Seam Overlapping and Taping

Each subsequent strip overlaps the previous strip by a minimum of 12 inches — 18–24 inches is better practice. The overlap seam is the most critical quality point in the installation. Apply seam tape as follows:

• Ensure both surfaces at the seam are clean and dry before taping — dust and moisture prevent adhesion
• Apply the tape centered on the overlap, pressing it firmly down the entire length of the seam
• Use a seam roller or J-roller to apply firm pressure along the entire tape length — hand pressure alone is insufficient for long-term adhesion
• Check every seam after taping by attempting to lift the tape at multiple points — it should be firmly adhered with no lifting edges

Sealing Around Penetrations

Every penetration through the barrier is a potential moisture pathway. For each penetration:

• Round pipes and conduit: Cut an X or cross in the barrier, pull the flap up around the pipe, and seal with compatible tape wrapped around the pipe and adhered to the barrier surface. Pre-cut penetration seals (rubber pipe collars with adhesive flanges) provide cleaner results for round penetrations.
• Square columns and piers: Cut the barrier to the perimeter of the pier base. Apply tape along all four sides where the barrier meets the pier surface — press firmly with the seam roller.
• Odd-shaped penetrations: Use a combination of cuts, patches, and tape to achieve a continuous sealed barrier around the penetration. Take extra time on these — they are the most common point of future moisture intrusion.

Completing the Side and Front Wall Coverage

As each strip is laid, the side walls must also be covered. Cut barrier strips to run up the side walls and tape them to the edge of the floor strips. The barrier should cover all ground-contact surfaces — walls included — to create a true continuous envelope. The front wall (nearest the access) is done last, with the barrier running up and being secured at the top edge near the access opening.

Phase 3: Quality Check Before Closing

Before the access door is closed, conduct a final walkthrough:

• Inspect every seam — no lifting tape edges, no gaps in the overlap
• Inspect every penetration — tape fully adhered on all sides
• Inspect wall attachment — barrier secured at top, no gaps at floor-wall junction
• Photograph the completed installation from multiple angles and distances — this creates your baseline documentation for future inspections and any warranty claims

Related on Tygart Media: full encapsulation process · access door sizing · inspection checklist.

Frequently Asked Questions

How long does it take to install a crawl space vapor barrier yourself?

For a solo homeowner in a standard-height (36″+) crawl space: 2–3 full days for a 1,200 sq ft crawl space, including preparation and cleanup. Low-clearance crawl spaces (under 24″) are significantly slower — add 50–100% to time estimates. Working with one other person reduces time by approximately 30% and significantly reduces the difficulty of handling full barrier rolls in a confined space.

How do I calculate how much vapor barrier I need?

Measure the crawl space floor area. Multiply by 1.35 to account for seam overlaps and wall coverage (assuming 12″ of wall coverage on all sides). For a 1,200 sq ft crawl space: 1,200 × 1.35 = 1,620 sq ft of barrier material. Add 10% for waste from cuts around penetrations in complex crawl spaces. Most barrier products are sold in standard roll sizes (e.g., 10′ × 100′ = 1,000 sq ft per roll) — purchase in the next roll increment above your calculated need.

What is the best tape for sealing crawl space vapor barrier seams?

Use tape specifically designed and labeled for vapor barrier seaming — typically a reinforced polyethylene tape or a butyl rubber tape compatible with the barrier material. Do not use standard duct tape (it fails in temperature and humidity extremes), packing tape, or general-purpose seam tape. Products from companies like Nashua, Poly-America, and the barrier manufacturers themselves typically offer compatible seam tape. Confirm compatibility on the packaging — some premium barriers require manufacturer-specific tape to maintain the product warranty.

The crawl space access door is one of the most neglected components in a crawl space improvement project — and in an encapsulated, sealed crawl space, it is also one of the most critical. An uninsulated, leaky access door can be the largest single air infiltration point in an otherwise sealed crawl space, undermining the moisture control and thermal performance of a system that cost $8,000–$15,000 to install. This guide covers what to look for in a crawl space access door, how to size it, and how to install one that actually performs.

Why the Access Door Matters in an Encapsulated Crawl Space

In a vented crawl space, the access door is essentially irrelevant from a performance standpoint — the space already communicates freely with outdoor air through foundation vents. In an encapsulated, sealed crawl space, the access door is one of the few remaining connections between the sealed interior and the exterior. An unsealed, uninsulated access door:

• Allows outdoor humid air to enter in summer, raising crawl space humidity and working against the dehumidifier
• Allows conditioned crawl space air to escape in winter, increasing heating load
• Provides a pest entry pathway — the most common entry point for mice in homes with sealed crawl spaces is an improperly sealed access opening
• Reduces the radon containment of the sealed enclosure if radon is a concern (the access point is a pressure equalization pathway)

Standard Access Doors vs. Insulated Crawl Space Doors

Standard Plywood or OSB Access Panel

Most existing crawl space access openings are covered with a simple piece of plywood or OSB cut to fit, resting in a rough opening in the floor or foundation wall. These provide essentially no insulation value and almost no air sealing. They are held in place by gravity and friction, creating significant air infiltration around all four edges.

For a vented crawl space that remains vented: the plywood panel is adequate — a leaky access door is not meaningfully worse than an open foundation vent. For an encapsulated crawl space: a plywood panel is not adequate and should be replaced.

Insulated Crawl Space Access Doors

Insulated crawl space access doors specifically designed for sealed crawl spaces include:

• Rigid foam core: A door constructed with a rigid foam (EPS or XPS) core surrounded by a rigid plastic or aluminum frame, providing R-10 to R-25 depending on foam thickness
• Weatherstripping on all four sides: Compressible foam or rubber weatherstrip that creates a seal when the door is closed
• Positive closure mechanism: A latch, turn button, or magnetic closure that holds the door firmly against the weatherstripping rather than relying on gravity
• Vapor barrier integration: Some dedicated encapsulation system doors include attachment flanges that allow the vapor barrier to be sealed to the door frame, creating a continuous vapor boundary

Products to know: The Bilco Company and Centurion Products make dedicated crawl space access doors for encapsulated applications. Some encapsulation contractors build custom insulated doors on-site using rigid foam and PVC trim. The DIY approach — a frame-and-foam custom door — is viable and commonly used.

Exterior vs. Interior Access

Exterior Access (Through the Foundation Wall)

An exterior access opening cut through or built into the foundation wall is the most common crawl space access configuration. It allows entry to the crawl space from the outside, typically at grade level. In an encapsulated crawl space, this opening must be sealed with an insulated door that provides:

• Weatherstripping on all four sides
• A positive latching mechanism
• Insulation value consistent with the rest of the encapsulation system (minimum R-10; R-15 to R-20 is better)
• Protection from water intrusion — the door should have a positive drainage angle so rain cannot pool at the threshold

Cost for an exterior insulated access door installation: $150–$400 for a pre-manufactured door, or $100–$200 in materials for a site-built rigid foam door with PVC trim framing. Professional installation adds $200–$400 in labor.

Interior Access (Through the Floor)

Some homes access the crawl space through a hatch in the floor — often in a closet, utility room, or laundry room. For an encapsulated crawl space, a floor access hatch requires:

• An insulated hatch cover (rigid foam core, minimum R-10) that sits in a weatherstripped frame
• A positive closure mechanism — floor hatches are particularly vulnerable to air convection when improperly sealed, because warm crawl space air naturally rises through the gap
• Vapor barrier sealed to the hatch frame rather than cut around the opening

Pre-manufactured insulated floor access hatches (such as those made by Bilco) are available but sized for basements and may be oversized for typical crawl space applications. Custom site-built solutions are common.

Sizing the Access Opening

The access opening must be large enough to allow the passage of equipment that may need to enter the crawl space — a dehumidifier, HVAC equipment, a roll of vapor barrier material. Minimum practical size:

• Foundation wall exterior access: Minimum 22″ wide × 30″ tall. This allows passage of a standard dehumidifier (typically 14″–16″ wide × 18″–24″ tall) and a person with equipment. For tight crawl spaces where a full-size dehumidifier must be passed through, 24″ × 36″ is more practical.
• Floor hatch interior access: Minimum 22″ × 22″. Larger is better for equipment passage — 24″ × 36″ is standard for a utility closet hatch that also serves as an HVAC access point.

Related on Tygart Media: encapsulation process · vapor barrier installation · inspection checklist.

Frequently Asked Questions

What kind of door do I need for an encapsulated crawl space?

An insulated door with rigid foam core (minimum R-10), weatherstripping on all four sides, and a positive latching mechanism. For exterior foundation wall access, the door should also protect against water intrusion at the threshold. Pre-manufactured options are available from Bilco and Centurion; site-built rigid foam doors with PVC trim framing are a common contractor approach that provides equivalent performance at lower material cost.

Can I just seal my existing crawl space access door?

If the existing door is solid and structurally sound, adding weatherstripping on all four sides and a positive latch can significantly improve performance without full replacement. If the door is a simple plywood panel with no frame and relies on gravity for closure, replacement with a properly framed, weatherstripped, insulated door is a better investment. Test the existing door’s performance by running a hand around the perimeter on a cold day — air movement indicates infiltration that weatherstripping must address.

How much does a crawl space access door cost?

A pre-manufactured insulated crawl space access door: $150–$400 for the door unit. Professional installation (framing, weatherstripping, latching hardware): $200–$400 in labor. Total installed cost for a new insulated exterior access door: $350–$800. A site-built rigid foam door with PVC trim and weatherstripping: $80–$150 in materials, plus labor if professionally installed.

A crawl space inspection is the foundation of every crawl space repair decision. Without knowing what is actually in the crawl space — the moisture levels, the wood condition, the mold extent, the drainage situation — any contractor proposal or DIY plan is a guess. This guide walks through a complete DIY crawl space inspection: how to prepare, what to bring, what to look for in each area, and how to document findings so you can get accurate contractor quotes and make informed decisions about what needs to be addressed.

Before You Enter: Safety and Equipment

A crawl space inspection requires minimal equipment but non-negotiable safety preparation:

• N95 or P100 respirator: Crawl spaces contain mold spores, fiberglass insulation particles, rodent droppings (which can carry hantavirus), and general dust. A dust mask is insufficient — a rated respirator is essential.
• Tyvek coveralls or dedicated clothing: Whatever you wear in the crawl space should not be worn back into the living space.
• Nitrile gloves
• Eye protection (safety glasses or goggles)
• Bright work light or headlamp: A single flashlight is insufficient for a thorough inspection. A rechargeable LED work light that can be set down provides hands-free illumination.
• Knee pads

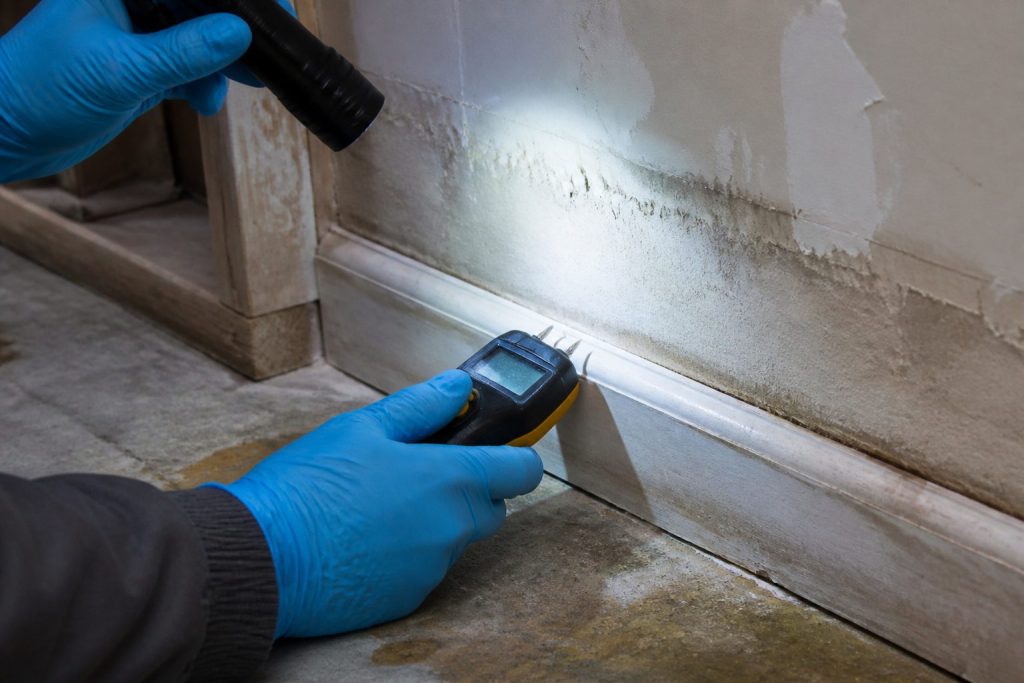

• Pin-type moisture meter ($20–$60 from hardware stores or Amazon): The single most important diagnostic tool for wood condition assessment.
• Digital hygrometer ($15–$30): Measures relative humidity and temperature in the crawl space air.
• Sharp awl or large screwdriver: For the probe test of wood condition.
• Smartphone or camera: Document everything with photographs and video.

The Inspection Sequence

Step 1: Before Entering — Exterior Check

Before entering the crawl space, inspect the exterior foundation from grade level:

• Is the soil grading away from the foundation (should slope away at least 6″ over 10 feet)?
• Where do downspouts discharge? Are they directed away from the foundation or do they dump at the foundation wall?
• Are foundation vents present? Are they open or blocked?
• Is there any visible evidence of water staining or efflorescence on the exterior foundation face?
• Are there any visible cracks in the foundation wall?

Step 2: Initial Entry — Air Quality Assessment

When you first enter the crawl space, note the air quality before your senses adjust:

• Musty odor: Indicates mold or high moisture. Severity of odor correlates (imperfectly) with extent of mold growth.
• Earthy/wet soil smell: Indicates high soil moisture or recent water presence.
• Rodent odor: Ammonia-like smell indicates active rodent activity.
• Place the digital hygrometer and allow it to stabilize for 15–20 minutes before recording the reading.

Step 3: Floor and Soil Assessment

• Standing water: Any pooled water after rain is a drainage problem.
• Saturated soil: Soil that holds an indentation when pressed, or that releases water when stepped on, indicates high moisture content from water intrusion or very high water table.
• Existing vapor barrier: Is one present? What condition is it in — intact, torn, punctured, pushed aside? Is it taped at seams?
• Drain tile: Is there an existing perimeter drainage system? Visible gravel channel at the foundation perimeter indicates drainage infrastructure.
• Sump pit: Is one present? Is the pump operational (turn it on manually if there is a test button, or pour water in to activate the float)? Is the pit covered and sealed?
• Watermarks: High-water marks on piers, columns, or the foundation wall face indicate past water level — measure the height from the floor to establish how deep water has been.

Step 4: Structural Wood Assessment (Most Critical)

Test structural wood at minimum 10–15 locations across the crawl space, focusing on the highest-risk areas:

• Sill plate (priority): Use the moisture meter on the sill plate at each accessible location around the perimeter. This is the highest-moisture wood member in most crawl spaces — it sits on concrete, which wicks moisture from both directions.
• Rim joist: The band joist atop the foundation wall. Test at multiple locations — particularly corners and any areas showing discoloration.
• Floor joists: Test the bottom face of joists at midspan and at the bearing ends (where they rest on the sill plate or beam). The bearing ends are where rot typically initiates.
• Support posts and columns: Test the base of each post where it contacts the pier footing.
• Beams: Test at bearing points and at any visible discoloration.

Interpreting moisture meter readings:

• Below 15% MC: Dry. No active moisture problem in this member.
• 15–19% MC: Elevated but not yet problematic. Monitor; address moisture source.
• 19–28% MC: Wood rot fungi can be active. Remediation appropriate.
• Above 28% MC: High. Wood rot is likely active. Urgent action needed.

The probe test: Push a sharp awl or large screwdriver firmly into any wood showing discoloration, staining, or high moisture meter readings. Sound wood resists penetration — it requires significant force to penetrate more than 1/8″. Rotted wood allows easy penetration, and the wood around the probe entry may crumble or separate. If the probe penetrates easily to 1/4″ or more, that section of wood has significant decay.

Step 5: Mold Assessment

• Identify all visible mold growth: Look for fuzzy or powdery growth on joists, blocking, and the underside of the subfloor. White, green, black, and gray growth are all possible mold colors.
• Estimate extent: Roughly estimate the percentage of joist surfaces with visible growth. Under 10% is limited; 10–30% is moderate; over 30% is extensive.
• Distinguish from bluestain: Blue-gray staining that penetrates the wood surface without surface fuzziness is bluestain (sapstain) — not the same as surface mold, though it indicates past or present elevated moisture.
• Photograph all visible mold: Multiple photos from different distances. Contractors and mold remediation professionals will want to see the extent and location.

Step 6: Insulation Assessment

• Is insulation present between the floor joists?
• Is it intact and in contact with the subfloor, or is it sagging, falling, or hanging?
• Does it show signs of moisture (discoloration, compression, or black spotting indicating mold)?
• Deteriorated, wet, or rodent-damaged fiberglass batt insulation must be removed before encapsulation — note the extent for contractor quotes.

Step 7: Pest Evidence

• Termite mud tubes: Pencil-width earthen tubes running up foundation walls or pier surfaces indicate active subterranean termite activity. This is a significant find requiring immediate pest control treatment.
• Wood damage: Galleries or channels in wood surfaces, powder post beetle exit holes (small round holes 1/16″–1/8″ diameter with fine powder beneath), or structural wood that sounds hollow when tapped.
• Rodent signs: Droppings, nesting material (insulation pulled into clumps, paper, fabric), gnaw marks on insulation, wiring, or wood.
• Entry points: Gaps in the foundation or between the sill plate and foundation where pests could enter.

Step 8: HVAC and Plumbing Equipment

• Is there HVAC equipment (air handler, furnace, or ductwork) in the crawl space? Note the condition of ductwork — sweating ducts or disconnected duct sections are common moisture sources.
• Are there any plumbing leaks, drips, or condensation on pipes?
• Is a dryer vent routed through the crawl space? Dryer vents that exhaust into the crawl space (prohibited by code) are a major moisture source. Note if present.
• Are there any open floor drains that could allow gas or pest entry from the drain system?

Documenting and Using Your Inspection

After the inspection, compile your findings into a summary:

• Highest wood moisture content reading and location
• Relative humidity reading and temperature
• Any probe test failures and their locations
• Mold extent estimate (percentage of joist surfaces affected)
• Water intrusion evidence (standing water, watermarks, efflorescence)
• Pest evidence summary
• Existing drainage and vapor barrier condition
• Photographs organized by category

Share this documentation with every contractor who provides a quote. A contractor who receives specific data (wood MC: 24% at northeast corner sill plate, RH: 82%, visible mold on approximately 20% of joist surfaces, no standing water) can provide a more accurate scope than one who is basing the quote on a quick visual walk-through. Contractors who conduct their own thorough inspection should be arriving at similar conclusions — significant discrepancies between contractor findings and your own assessment warrant investigation.

Related on Tygart Media: crawl space mold removal · vapor barrier installation · IICRC S500 pocket flow.

Frequently Asked Questions

Can I inspect my own crawl space?

Yes, with appropriate safety equipment: N95 or P100 respirator, Tyvek coveralls, gloves, and eye protection. The inspection tools — moisture meter, digital hygrometer, sharp awl, and a bright work light — are inexpensive and available at hardware stores. A thorough DIY inspection before contractor meetings gives you independent data to compare against contractor findings.

What is the most important thing to check in a crawl space inspection?

Wood moisture content at the sill plate and floor joist bearing ends — measured with a pin-type moisture meter. This is the single most diagnostic measurement in a crawl space inspection. A sill plate reading above 19% means active or past moisture problem; above 28% means wood rot is likely active. Everything else in the inspection informs the cause and the solution; the moisture meter tells you whether structural damage is occurring or imminent.

How do I know if I have termites in my crawl space?

Look for mud tubes — pencil-width earthen tunnels running up foundation walls, pier surfaces, or structural wood. Termites build these tubes to travel between soil and wood while maintaining the humid environment they need. Mud tubes are the most reliable visual indicator of subterranean termite activity. Also look for wood that sounds hollow when tapped or crumbles when probed, and for small wings near foundation vents (shed during swarming season). Any suspected termite evidence warrants immediate professional pest control inspection.

Crawl space drainage is frequently the largest single cost component in a crawl space restoration project — and the one most homeowners least expect when they originally call about encapsulation. Understanding what drainage actually costs, what drives the price up or down, and how drainage and encapsulation are typically bundled in contractor proposals helps homeowners evaluate quotes and plan budgets accurately for what is often a $4,000–$12,000 line item before encapsulation materials are added.

When Drainage Is Actually Needed

Not every crawl space needs drainage. The decision depends entirely on whether liquid water — not just humidity — enters the crawl space during or after rain events. If your crawl space assessment shows:

• Standing water or saturated soil within 48 hours of rain
• Watermarks or efflorescence on foundation walls indicating past water contact
• A consistently high water table that rises to the footing level seasonally

Then drainage is required before encapsulation. Encapsulating without drainage in these conditions traps the water, creating worse problems than the untreated crawl space. A crawl space with only humidity and condensation — no liquid water intrusion — does not need drainage; encapsulation and a dehumidifier address the moisture without it.

Interior Drain Tile System Cost

An interior perimeter drain tile system — the standard solution for crawl space water intrusion — involves excavating a channel at the base of the interior foundation wall, installing perforated drain pipe at or below footing level, bedding it in gravel, and directing flow to a sump pit. Pricing:

• Drain tile installation: $25–$45 per linear foot of perimeter channel. This covers excavation, perforated pipe, gravel bedding, and cover (gravel cap or concrete patch depending on contractor preference and crawl space floor type).
• A 1,200 sq ft crawl space has approximately 140 linear feet of perimeter. At $25–$45/LF: $3,500–$6,300 for drain tile alone.
• A 2,000 sq ft crawl space has approximately 180 linear feet of perimeter: $4,500–$8,100 for drain tile alone.

Factors that push drain tile cost higher:

• Low crawl space clearance (under 24″): Hand-excavating a channel while lying on your back is significantly harder and slower than in a standard-height crawl space. Add 30–50% to labor cost.
• Concrete or thick gravel floor: Breaking through an existing concrete floor or compacted aggregate before excavating adds labor and disposal cost. Add $5–$10/LF.
• Rocky soil: Dense clay or rocky substrate is harder to excavate than sandy or loam soil. Add $3–$8/LF.
• Footer obstructions: Some older foundations have footings that extend inward, requiring the channel to be cut through them rather than alongside them.

Sump Pit and Pump Cost

The drain tile must discharge somewhere — the sump pit collects the water and the pump ejects it away from the structure.

• Sump pit excavation and basin installation: $500–$1,200. Includes digging the pit to appropriate depth (typically 18″–24″ deep, 18″–24″ diameter), installing a pre-formed plastic basin, and connecting the drain tile to the basin.
• Submersible sump pump (1/3 HP, standard): $150–$400 for the pump unit. Installed cost (pump + check valve + discharge pipe to exterior): $300–$700.
• Battery backup system: $150–$400 for the backup unit. Essential — a crawl space that needs drainage is particularly vulnerable during power outages when pumps fail. Strongly recommended.
• Total sump system (pit + submersible pump + battery backup): $950–$2,300 installed.

Complete Drainage System Cost Summary

Component	Typical Cost Range
Interior drain tile (per LF)	$25–$45/LF
Sump pit excavation + basin	$500–$1,200
Submersible pump (1/3 HP) installed	$300–$700
Battery backup sump system	$150–$400
Total for 1,200 sq ft crawl space	$4,500–$8,600
Total for 2,000 sq ft crawl space	$5,500–$10,500

How Drainage and Encapsulation Are Typically Bundled

Most crawl space contractors who install drainage also install encapsulation — and bundled projects typically cost less than sourcing each separately. When getting quotes for a wet crawl space that needs both:

• Ask for the drainage cost and encapsulation cost to be itemized separately — this lets you compare apples-to-apples with other contractors and understand where the money is going
• Bundled total for drainage + encapsulation in a 1,200 sq ft crawl space: $10,000–$20,000 depending on drainage complexity and encapsulation system specification
• Some contractors discount the encapsulation when installed immediately after drainage — ask whether the quote reflects a discount for bundling or whether they are separate job pricing
• Verify that the drainage is installed and confirmed effective before the vapor barrier is installed — a contractor who installs the vapor barrier over the drainage system on the same day has not confirmed the drainage is working

Regional Cost Variation

• Southeast (highest crawl space frequency, competitive market): Drain tile at $22–$35/LF. Basement Systems franchises in the Southeast are often priced at the higher end; independent local contractors at the lower end.
• Mid-Atlantic and Midwest: Drain tile at $28–$42/LF. Markets include both regional specialists and national franchise operations.
• Pacific Northwest and Northeast: Drain tile at $35–$55/LF reflecting higher labor rates. Seattle, Portland, Boston, and New York metro areas are at the high end.

Related on Tygart Media: encapsulation process · repair cost guide · inspection checklist.

Frequently Asked Questions

How much does interior crawl space drainage cost?

Interior perimeter drain tile costs $25–$45 per linear foot installed. A typical 1,200 sq ft crawl space has approximately 140 linear feet of perimeter, making drain tile cost $3,500–$6,300 before the sump pit and pump. Total drainage system (drain tile + sump + battery backup) for a 1,200 sq ft crawl space: $4,500–$8,600.

Can I install crawl space drainage myself?

The physical work of excavating a perimeter channel by hand in a crawl space is extremely demanding and typically not DIY-appropriate — it involves many hours of labor in a confined space, grading pipe to drain accurately, and often dealing with concrete or compacted substrate. Sump pit installation requires excavation and electrical work. Professional installation is strongly recommended for crawl space drainage.

Does crawl space drainage need to be installed before encapsulation?

Yes, always. Installing a vapor barrier over a crawl space with active water intrusion traps the water beneath it, creating worse conditions than an unencapsulated wet crawl space. Drainage must be installed, confirmed effective through at least one significant rain event, and then encapsulation follows. A contractor who proposes installing the vapor barrier on the same day as drainage has not allowed time to confirm drainage effectiveness.
